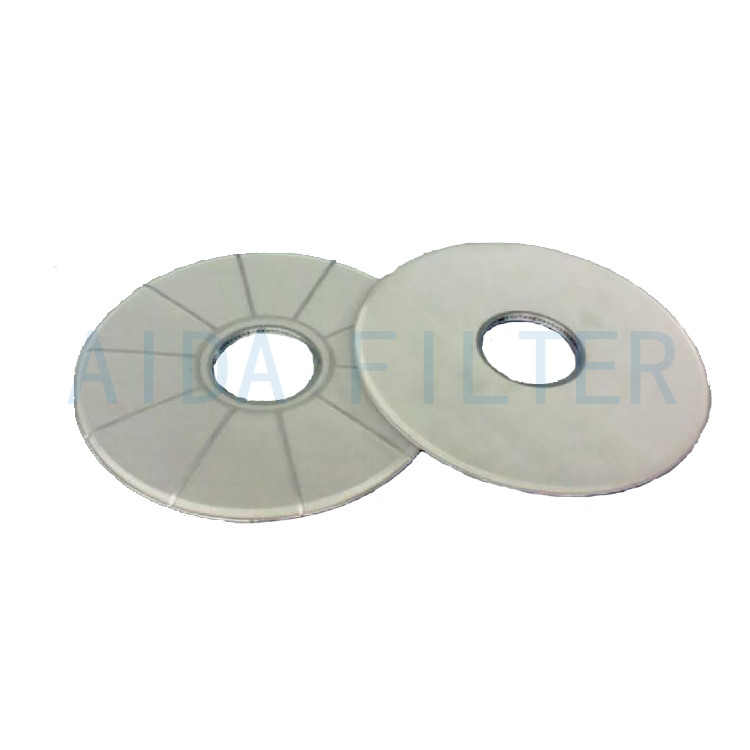

High efficiency round micron ss sintered disc filter
Model：Customizable
Precision：5-150um
Filter disc,Disc filter
Disc filters are used in high viscosity melt filters, hard impurities and condensates that are easily removed.
The materials are stainless steel fiber sintering felt and stainless steel sintering net.The disc filter can be reused and cleaned multiple times.
Material：Stainless steel fiber sintered felt, Stainless steel sintered network.
Characteristic：High temperature resistance, Corrosion resistance, Washable.
Technical parameter:
Working pressure：30Mpa
Differential pressure：5-12Mpa
Filtration accuracy：5-150um
Working temperature：300℃
Viscosity：260Pa.s
| 代号 | A（mm） | B（mm） | H（mm） | 过滤面积（㎡） |
| LF-4.4 | 111.1 | 38.1 | 5.6-10 | 0.014 |
| LF-7A | 177.8 | 47.6 | 0.041 | |
| LF-7B | 177.8 | 63.5 | 0.037 | |
| LF-7C | 177.8 | 85.2 | 0.029 | |
| LF8 | 203.0 | 63.5 | 0.052 | |
| LF-8.8A | 222.3 | 63.5 | 0.066 | |
| LF-8.8B | 222.3 | 76.2 | 0.063 | |
| LF-8.8C | 222.3 | 85.0 | 0.060 | |
| LF-10 | 252.0 | 85.0 | 0.080 | |
| LF-11.4 | 290.0 | 76.2 | 0.114 | |
| LF-11.7 | 297.2 | 85.0 | 0.116 | |
| LF-12A | 304.8 | 85.0 | 0.120 | |
| LF-12B | 304.8 | 63.5 | 0.130 | |
| LF-13.2 | 335.0 | 72.5 |
0.155 |
-
-
-
-
-
