Product Details
UK walker compressor inline filter
WALKER inline filter characteristics
WALKER, precision filter, continuous removal of 0.003 PPM can type oil mist and 0.01 um solid particles
Precision filter, built-in automatic drainer, differential pressure gauge or differential pressure table is optional
Walker precision filter is equipped with 25 um, 5 um, 1um, 0.01 1um4 kinds of grades of filter, which can meet the needs of different customers
Simple and easy to replace filter
Filter has big filter area, small pressure loss, compared to peers, the same interface, the same filtration precision, WALKER (WALKER) brand precision filter maximum flow; Use pressure 0.3 ~ 16 Barg, processing flow, 35-2600 m3 / h
Walker precision filter using large aluminum shell cooling effect, have excellent cooling and drying effect
WALKER (Britain) precision filter is widely used in various industrial production requirement for high level of purification equipment, such as microelectronics technology, photoelectric industry, petrochemical industry, power plant (flame TV, instrumentation, the primary and secondary air door, pulverized coal conveying, boiler turbine, etc.), breathing air system (such as cavern) of coal mine, the medical enterprise (hospital heating gas purification and respiratory gas purification and other special occasions), automobile manufacturing, spraying and so on many need to apply high precision filter, filter effects to provide accurate and reliable for a long time.

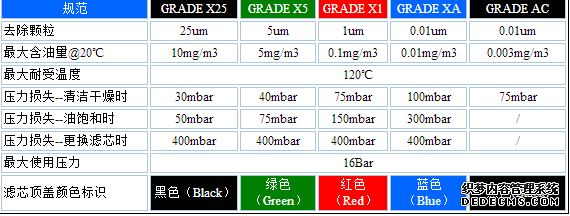

WALKER inline filter technical specifications
1, Walker, precise filter is made of aluminum alloy, with CE mark.
2, meet ISO7/1 BSP taper thread connections or in accordance with ANSI B2.1 NPT connection.
3, Walker, precision filter core with the top color to distinguish between different levels of air flow from inside the filter flow through the filter to the outside of the filter element.
4, the precision filter model of A20 and A30 equipped with differential pressure gauge, from model A55 to A308 equipped with differential pressure table, models for 55 DPIW, but AC levels of no, all level AC filter without 55 DPIW.
5, Walker, activated carbon filter cannot be used to contain oil saturation, but it can efficiently remove oil mist steam, can not get rid of some gases such as carbon monoxide and carbon dioxide. AC filter to change regularly, at least not replacement cycle may not be less than 6 months.
6, manual drain valve, model for the MDV25 all suitable model.
7, WALKER, precision filter is available to all of the models with mounting bracket, see page accessories products.
8, all filter shell is through electrophoresis processing first, and then after the end of the spray coated with a layer of polyethylene powder blue to prevent corrosion.
9, WALKER, screw-type precision filters and filter all mineral oil resistant synthetic, can be used to need to use oil-free compressed air equipment.
10, for large flow equipment, use flange type filter for reference.
Order Tips
1. If you are not sure about the filter needed exactly,please advise its exact working environment and usage.We help you choose certain suitable filter.
2. We accept mixed order for MOQ 20pcs. For your inquiry please mail to amy@aida-machinery.com. We will make you competitive offer in 24hours.
