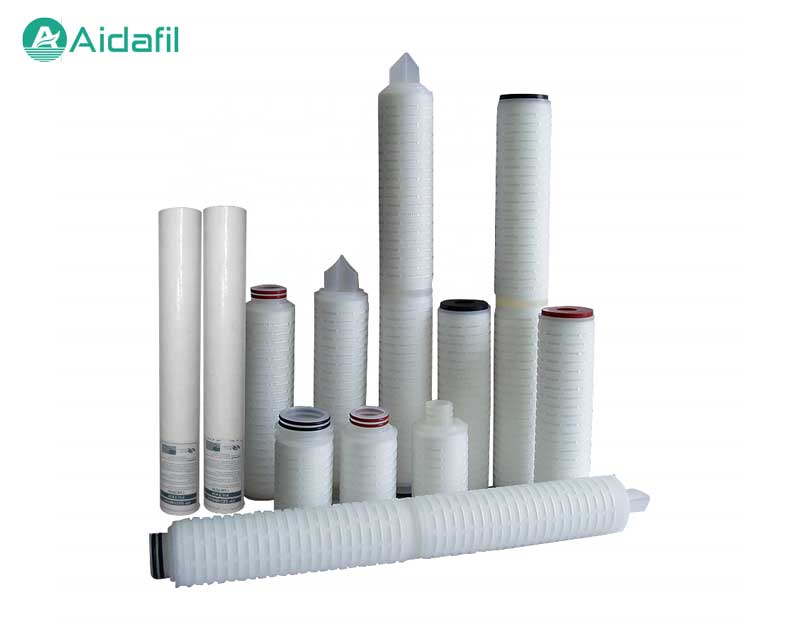

The PP folding filter element is formed by folding ultra-fine polypropylene fiber film, non-woven fabric or (silk mesh) inner and outer support layers. The center rod and end cover of the filter element shell are processed and formed using hot melt welding tech, without any adhesive, leakage, and secondary pollution.

The filter element adopts a foldable type, with a large membrane filtration area, large pollutant capacity, low pressure difference, and long service life.

Can meet special customer customization needs ，just like this time our Jordan customer ordered 100pcs pp water filter element MPA0.2-20S1V , specific parameters pls check the following :

Inner diameter: 25.4mm

Outer diameter: 67.8mm

Length : 20’’

Filter material : PP

Inner core : PP

End cover : PP

Filter micron : 0.2μm

O-rings : Viton

End cover structure : DOE
