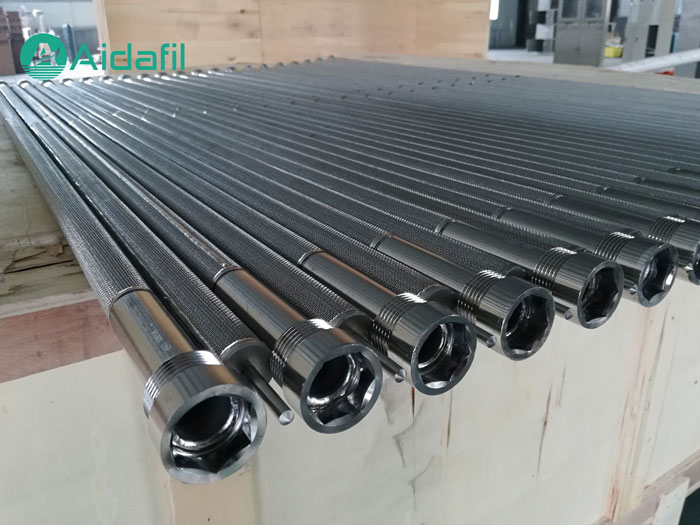

Sintering filter element: It is a new type of filter material with high strength and overall rigidity, which is made of multi-layer metal sintering mesh, multi-layer stainless steel mesh, special laminated pressing and vacuum sintering. The mesh of each layer of screen is interlaced to form a uniform and ideal filtering structure. It has the characteristics of high porosity, high sewage receiving capacity, etc; Stainless steel woven mesh is made of stainless steel wire with different diameters. The filter element made of stainless steel woven mesh has the characteristics of good strength, not easy to fall off, easy to clean, high temperature resistance, and economic use.

Main features

1. High overall strength. The standard sintered filter element is a five layer stainless steel mesh, which can also be determined according to user requirements

The mechanical strength and compressive strength of products with more than six layers are outstanding.

2. Good filtering performance. The sintered filter element can always filter in the range of 2 to 200um

Homogeneity of.

3. Excellent heat resistance. From - 200 ° C to 650 ° C, the sintered filter element can complete continuous filtration.

4. Cleaning is very convenient. After all, it is made of stainless steel. When the sintered filter element is replaced and cleaned

It's that simple.

Main application

1. Machinery industry: precision filtration of hydraulic oil, lubricating oil and other oils.

2. Electrical industry: buzzer, etc.

3. Petrochemical industry: purification of polymer melt.

4. Chemical fiber film industry: filter high-temperature and corrosive liquids.

Advantages

1. The stainless steel sintered filter element is simple in appearance, reasonable in size, compact in structure, small in size, small in area, simple in installation and use, easy to use and master.

2. High filtration precision, which can be controlled by using main filter layers, can be used for manufacturing drinking water treatment and large-scale industrial treatment of any fine foreign particles or suspended solids, and the filtration range can be from 0.1 to 200 microns. No matter in the industrial field or in the food industry, it can be replaced and debugged continuously according to the application accuracy. It is easy to use and has the function of repeated cleaning.

3. The stainless steel sintered filter element has large processing flow per unit filtering area, small filtering resistance and high filtering efficiency

4. It is widely used, usually for coarse filtration, medium filtration or fine filtration. After achieving the same filtering effect at the same time, compared with plate and frame fine filter, filter element type filter and other equipment, it is cost-effective, efficient and practical.

5. Long service life and low filtering cost. The stainless steel sintered filter element has the characteristics of high filtering precision, large processing capacity, cost saving, improved work efficiency, etc. It is easy to clean, and can be cleaned within a calculated time. It is efficient, fast, and time-saving.

6. The stainless steel sintered filter element can meet the requirements of various filtering flows, and the filtering quality is particularly stable and high-quality. The external support hardware can be changed at any time as required. The product model can be completely customized according to the requirements.

Customer case

New Jordanian customers purchase sintered filter cartridges for mechanochemical production. They produce thickened and other specifications according to customer requirements, which meet the customer's working environment. The filter cartridges are resistant to high temperature and corrosion, and have high filtering accuracy, which is very consistent with the filtering process during processing. In the whole project, the replacement cycle of the sintered filter element is strong, and the amount of dirt is large. The customer feedback is a very ideal product.
