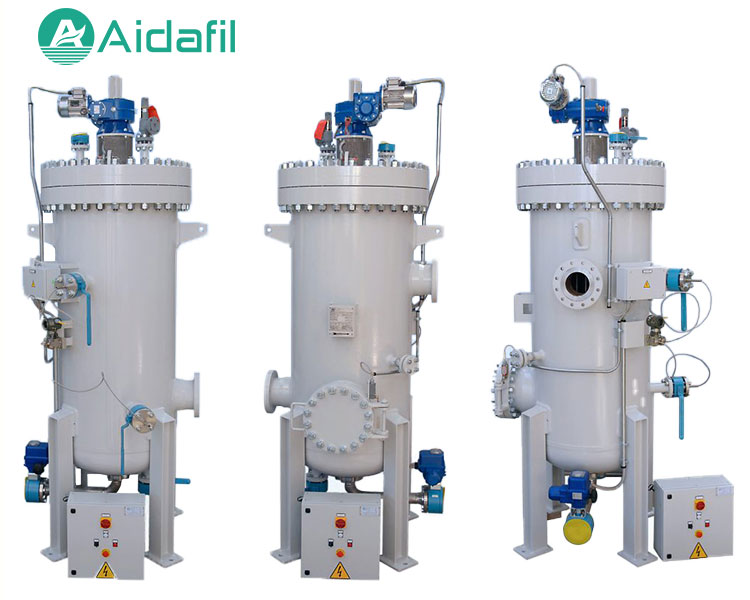

Self-cleaning filter is a kind of use of the filter directly to intercept impurities in the water to remove water suspended solids, particulate matter, reduce turbidity, clean water quality, reduce system dirt, bacteria algae, rust, etc. to clean water quality and protection system other equipment normal Work precision equipment, water from the inlet into the self-cleaning filter body, due to intelligent (PLC, PAC) design, the system can automatically identify the degree of impurity deposition, to the sewage valve signal automatic sewage.

Features

• Linear reciprocating mechanical scraping, removing impurities directly from the surface of the filter element

• Simple structure, easy to clean and maintain

• Automatic continuously online  filtration, ending the heavy work of cleaning and replace filter element

• No disposable filter media consumption, save filter media cost and environment cost

• Very low pressure drop, stable flowrate, save energy consumption

• Close filtration, no dangerous liquid leakage, good for safe production

• High impurity concentration, recyclable, avoiding wasting high value materials

• Various modular combination and automation modes available, meeting different filtration needs

Working Principle

1.When the pressure difference between the inlet and outlet of the flter reaches the preset value, the filter will start the self-cleaning process.

2.The whole self-cleaning process includes two steps:Open the drain valve located on the upper end cover of the filter;The motor drives the stainless steel brush in the main body filter to rotate, and the impurities captured by the filter are brushed down by the steel brushor scraper and discharged from the drain valve.

3.The entire cleaning process takes about 15-60seconds, the system isconstantly flowing duringcleaning and the entire runningprocess of the fiter iscontolled by a random equipped control box.

Application

Water and waste water

Pulp and paper

Petro-chemical

Bio-pharmaceutical

Coatings

Food and beverage

 Last month our client  Azhar from United Arab Emirates contacted us . He is working in a water treatment, He ask us Which kind of filter you can advice for our company?

Capacity: 10 m3/hr

Type: Hydraulic self-cleaning

Micron rating: 100

MOC of housing: Carbon steel

Screens MOC: SS316

Op. pressure: 3 bar

Max. pressure: 10 bar

After technical discussion, we recommended model ASDQ50-E filter Our client finally ordered 5 units the model. After installed, our filters were working pretty well. The
