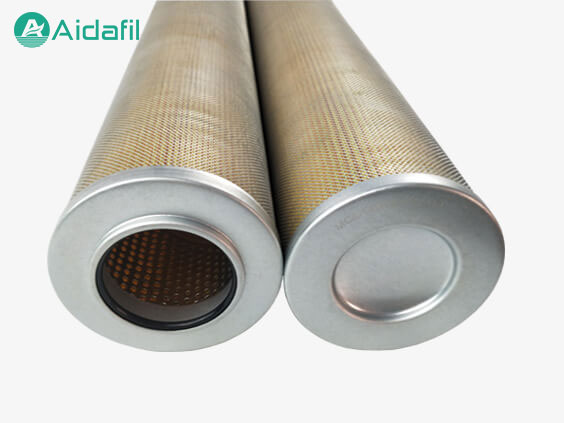

The MCC1401 filter element can be used with two basic types of media: Epocel - a resin-impregnated cellulose, and Ultipor - a resin-bonded fiberglass. These specially designed absolute rated media are available in different grades with specified removal efficiencies, providing up to 54 square feet of effective filtration surface area, ensuring a long service life.
MCC1401 cartridges are of pleated design, supported internally by a steel core and protected externally by steel endcaps, providing positive sealing via an internal O-ring. The maximum recommended changeout differential pressure is 60 psid/4.13 bar at 275˚F/135˚C.
Applications as below:
Removal of contaminants from natural gas pipelines at the inlet of the compressor station to avoid damage to the compressor and prevent wear of the cylinders and valves.
Prevent the injection of solid and liquid contaminants before the natural gas storage station.
Removal of contaminants from fuel gas lines in engines, power plants and pre-plants.
Removal of solid and liquid contaminants in front of the gas treatment station to prevent contamination of process equipment and poisoning of the catalytic bed.
Downstream of the reciprocating compressor to remove the lubricating oil carried in the air stream.
Prevent fracturing and sanding of desiccant and contamination of paraffin and asphaltenes before the solid desiccant bed.
Remove water and pipeline contaminants from the inlet gas stream at the dewatering and treatment station.
